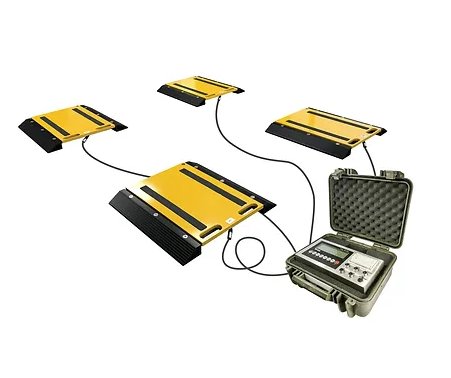

Tufner TUF-PADS Portable Axle Pads

Tufner TUF-PADS Portable Axle Weigher

FEATURES
● Portable, low profile and heavy duty construction
● Easily weighs large vehicles such as trucks, vans, tankers and trailers
● Interlocking skid resistance ramps
● 33’ long shielded metal cable
● Two handles and two wheels for easy carry and moving on each pad
● Easy to use; driver can operate and weigh single-handedly

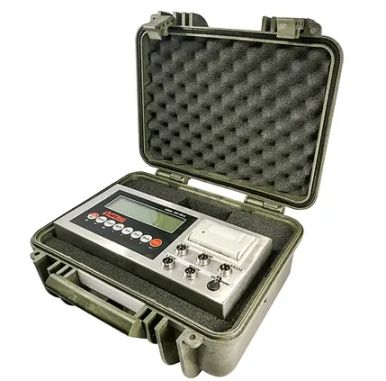

● Includes waterproof indicator suitcase for protection and portability
● Built-in printer that prints weight of each axle and accumulates total with time & date
● Larger options/high capacities available

P/N .... # of PADS .. CAP OF PAD .. OVERALL CAP ....... SIZE
TP-21614     2     10,000 lbs (each)           20,000 lbs   16” W x 14” L x 1.5” H
TP-41614     4     10,000 lbs (each)           40,000 lbs   16” W x 14” L x 1.5” H
TP-61614*   6     10,000 lbs (each)           60,000 lbs   16” W x 14” L x 1.5” H

TP-22416     2     25,000 lbs (each)           50,000 lbs   24” W x 16” L x 2” H
TP-42416     4     25,000 lbs (each)         100,000 lbs   24” W x 16” L x 2” H
TP-62416*   6     25,000 lbs (each)         150,000 lbs   24” W x 16” L x 2” H

TP-23224     2     50,000 lbs (each)         100,000 lbs   32” W x 24” L x 2” H
TP-43224     4     50,000 lbs (each)         200,000 lbs   32” W x 24” L x 2” H
TP-63224*   6     50,000 lbs (each)         300,000 lbs   32” W x 24” L x 2” H

AXLE PAD CART
TP-CT-2     Holds 2    31.5” W x 28.5” L x 13” H
TP-CT-4     Holds 4    31.5” W x 28.5” L x 17” H

Pads can be ordered in 2, 3, 4, 6, or 8+ pad systems.

*Systems with 6 or more pads requires a wireless system.
