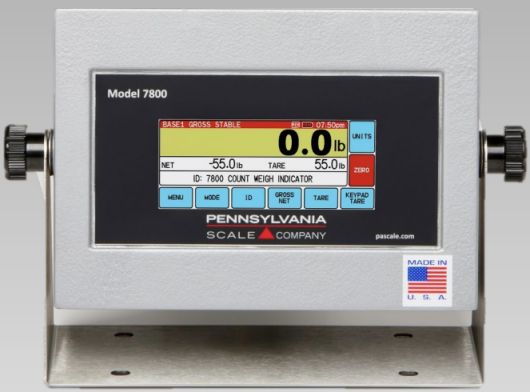

Whether checking inventory, picking parts, performing quality control or packaging products, the high-resolution 7800 touchscreen scale readout helps you eliminate costly inaccuracies for more precise counting and weighing. You’ll work more efficiently and save on assembly and shipping costs.

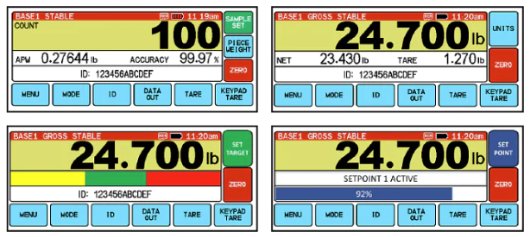

Featuring a Windows-type operating display that provides multi mode operation for Weighing, Counting Check weighing or Process Control. Embedded alpha-numeric keyboard and operational prompts offers superior flexibility to simplify the most sophisticated weighing application.
For even greater operator ease and productivity, the screen displays only the data and input buttons of the function being used, so there’s no confusing on-screen clutter or data. The 7800’s super heavy-duty industrial design is reliable in the toughest environments for years of trouble-free performance.
Choose the standard 7800 touchscreen indicator with aluminum enclosure or for washdown environments, go with the 7800MAX SERIES which includes IP69K WASH DOWN TOUCHSCREEN functionality.
Standard Features
• Aluminum enclosure or IP69K rated SS enclosure available
• Clean, convenient design with bright, stable full-color display and touchscreen
• Full alpha-numeric QWERTY keyboard for easy entry of scale data points
• Check weighing and Setpoint relay operation
• SKU/Product ID Database to store and recall by alphanumeric Part#, Description, Piece Weight, Tare Weight, 3 user-defined Fields, Over/Under Check weigh Settings, Setpoint/Relay Target settings
• Adaptive changes to show units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
• Single or optional dual base-counting and weighing
• Multiple count modes and Auto Sample Update and percent-of error/accuracy display
• Fast one-step or two-step counting
• Two powerful and flexible standard serial ports, optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
• Power AC line voltages 115 VAC, 50/60 HZ
• Power Consumption 0.25A at 115 VAC
• Circuit Protection RFI, EMI, ESD Protection ADC shielded
• Display: 800 X 320 dot resolution, and 4.6” full-color LCD display with resistive touch panel
• Indications for Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
• Operating Temperature 14℉ -10℃
• Internal Resolution 1/8,000,000
• Displayed Resolution. Standard 1/10,000. Up to 1/50,000
• 5 VDC excitation to power up to 12, 350-ohm load cells
• Dimensions 8” H X 11” W X 3” D
• NTEP Approved Legal for Trade
PART# ........... DESCRIPTION
7800 7800 Touchscreen digital weigh and count indicator. Diecast Aluminum enclosure with SS “U” mounting bracket
7800MAX 7800 MAX IP69K Wash Down Touchscreen digital weigh indicator. Heavy Gauge 304 SS Enclosure and “U” mounting bracket
7800 Options
7800 EM Expanded database memory to store and recall 3,000-part numbers
7800 AB 1 Alarm Buzzer Mounted inside scale or indicator
7800 AO Analog output option. Jumper select for 0 - 10 VDC or 4 - 20ma (Specify when ordering) output via two conductor cable.
7800 BC Heavy duty industrial barcode scanner. Power supplied from scale with convenient bulkhead quick disconnect
7800 BTH Bluetooth option. Internal Bluetooth transmitter/receiver for com port communication.
7800 DB 2nd Base Input – for dual base or sample/bulk counting applications
7800 DCR 4 VDC, 2 amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values.
7800 EO Wired ethernet option. Wired ethernet communication port, fully networked configurable with bulkhead RJ45 connector. Includes software utility for setup and configuration
7800 HID Human interface device USB Option. Provides keyboard emulation USB port with USB "A" bulkhead connector
7800 SLA1 Alarm Stack light 1 Lights, Red and Buzzer Alarm. 2" Diameter, 16" High.
7800 SLA2 Alarm Stack light 2 Lights, Red, Green and Buzzer Alarm. 2" Diameter, 18.75" High.
7800 SLA3 Alarm Stack light 3 Lights, Red, Green, Yellow and Buzzer Alarm. 2" Dia. 21" High.
7800 SSR 120 VAC, 2 amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values.
7800 USB USB option. Provides USB comport communications with USB "A" bulkhead connector
7800 WIFI Wi-Fi option. Wireless ethernet communication with bulkhead mounted antenna, fully networked configurable. Includes software utility for setup and configuration
CUSTLABEL Custom Label Programming. Design and set up of custom label for a plug and play system. See custom label worksheet
DT2PRINTER-1 2" Direct thermal barcode label printer. Includes 6' scale to printer cable. For custom label program see part# CUSTLABEL above
DT4PRINTER-1 4" Direct thermal barcode label printer. Includes 6' scale to printer cable. For custom label program see part# CUSTLABEL above
DTR2PRINTER-1 2" Direct thermal receipt printer. Includes 6' scale to printer cable.
CALCERT1 Statement of Accuracy Certificate
Specials Special Applications are available for this model. Contact us to discuss your unique application requirements so we can develop a great solution for you
