Airports throughout the world are finding the rugged simplicity and long life of Pennsylvania Scale industrial products are ideal in the hard knock life of weighing airline baggage. Architects and designers appreciate our responsive customer service and clean designs. Airports and Gate Supervisors appreciate the rugged construction and sustained accuracy as well as compliance with local Weights and Measures regulations. Due to the increased emphasis on baggage weighing for weight and balance purposes plus charging for excess baggage weight, there is a renewed emphasis by the FAA and local Weights and Measures agencies for approved scales.
Pennsylvania Scales are widely used by municipalities, Airport Authorities, and commercial Airlines for the purpose of baggage check-in; their reputation for rugged reliability and no-nonsense support is spreading rapidly in the airport business. Major users include (but are not limited to) USAirways Pittsburgh; Miami International Airport (all terminals); Alaska Airlines; and many other installations at major airports worldwide.
NOW: UP TO 4 DISPLAYS AVAILABLE in choice of high intensity RED or GREEN
NOW: Specify 1, 2, 3, or 4 displays with any Pennsylvania baggage scale-- ideal for situations where a single platform is shared between two check-in stations. Additional displays can be added to most existing units in the field if re-purposed in another area of the terminal or installed for temporary check-in stations. This would provide a separate display-- WITH or WITHOUT buttons-- for (2) agents and (2) customer displays when shared.

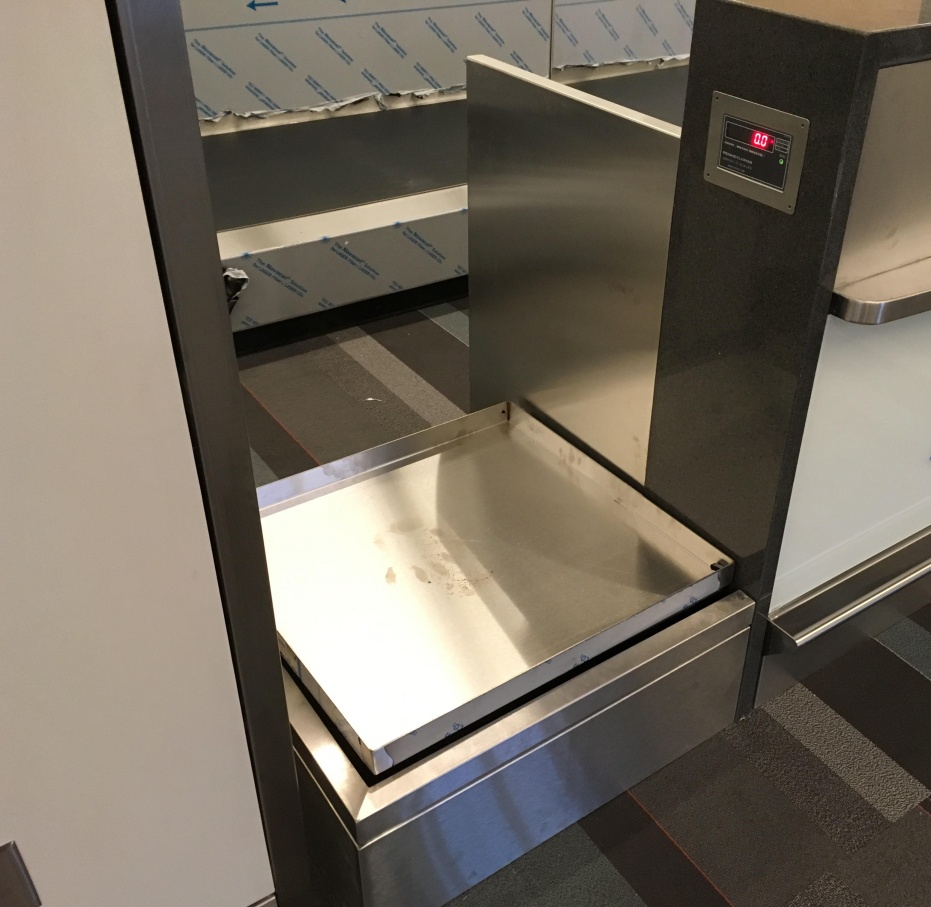

Choose FLUSH MOUNT with SS bezel with buttons ZERO/UNITS/PRINT for agent side or WITHOUT buttons. Most popular configuration is shown at (R) -- ideal for front/back or inside the face of the bagwell. Standard GREEN LED's or specify high intensity RED LED displays:
Choose from 3 display options at no extra cost: SS Flush Mount (standard for both Agent and Passenger side with/without buttons for ZERO/UNITS/PRINT), Desk/Wall mount ideal for behind counter on Agent side, or Minitower. Standard cable lengths of 10' can be customized as long as 40' from the main platform unit.
These M64 systems are perfect for the BAGGAGE SCALE replacement and upgrade business because it is a package that will serve you (airline, municipality, curbside check-in) far better than the competition-- with classic Pennsylvania rugged designs that will last, be easy to maintain, and provide superior service. Retrofit Kit also available
Part Number ....... Capacity ....... Base Size .......................... Description
M64-1824-250-1 250 lb 18" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons
M64-1824-250-2 250 lb 18" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without
M64-1824-500-1 500 lb 18" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons
M64-1824-500-2 500 lb 18" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without
M64-1824-1K-1 1,000 lb 18" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons
M64-1824-1K-2 1,000 lb 18" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without
M64-2424-250-1 250 lb 24" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons
M64-2424-250-2 250 lb 24" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without
M64-2424-500-1 500 lb 24" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons
M64-2424-500-2 500 lb 24" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without
M64-2424-1K-1 1,000 lb 24" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons
M64-2424-1K-2 1,000 lb 24" x 24" x 5" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without
The M66 series is meticulously engineered with resilience at its core, boasting an exceptionally heavy-duty design that ensures years of trouble-free service. Featuring a sturdy powder-coated structural frame and a 304 Stainless Steel Platform cover, our scales not only offer durability but also an attractive appearance designed to endure the rigors of time.
Available in sizes of 24” X 24” X 3” or larger and custom dimensions with capacity of 1,000 lbs., our M66 series also offers customization options to meet specific requirements. Ideal for top of bagwell applications.
Approved by NTEP and legally certified for trade at 5,000 divisions, each scale undergoes thorough pre-calibration and rigorous testing at our factory before shipment, ensuring effortless installation and compliance with local weights and measures regulations.
M66-3030-1K-1 1,000 lb 30" x 30" x 3" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons
M66-3030-1K-2 1,000 lb 30" x 30" x 3" Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without
Larger and Custom Sizes that are NTEP and Measurement Canada Approved. Consult the factory for information and quotation
Airline Baggage Scale Electronics and Display Packages
ABS7400-1
Single Display -NTEP and Measurement Canada approved, Aluminum Enclosure w/ Main Board to Upgrade Existing Platform by Other Manufacturers
ABS7400-2
Dual Display -NTEP and Measurement Canada approved, Aluminum Enclosure w/ Main Board to Upgrade Existing Platform by Other Manufacturers
3 Displays
Add a 3rd Display for Any Baggage Scale System Above, for a Total of 3 Displays
Contact factory for quotation
4 Displays
Add a 3rd and 4th Display for Any Baggage Scale System Above, for A Total of 4 Displays
Contact factory for quotation
Other M64 Options & Upgrades
ALSO AVAILABLE various configurations of Platforms, Wheels, Columns, and Displays for weighing passengers at Check-In, Carry-on Baggage, or for Temporary set-up at Gates:
ALSO AVAILABLE Heavy Duty PLATFORM SCALES for weighing Cargo, Cargo Containers, Pups, and other purposes such as Air Freight stations, Freight Reweigh applications, and more. The versatile 6600 Floor Scale system is available in standard and custom sizes from 24 x 24" to 120 x 120" and capacities of 500 lbs to 40,000 lbs. A wide range of mounting options and accessories is available for any environment. The scales are designed for ON FLOOR, IN-FLOOR (pit) mounting or PORTABLE use.
Update: The M64 Airline Baggage scale has been very successful in the marketplace-- both for long term reliability and performance. A number of the FIRST units, dating all the way back to 1991 continue in service at Pittsburgh. We have been limited by the maximum 24 x 24" platform size... up to now.
ANNOUNCING larger platforms based on our well-proven and extremely rugged 6600 design! These, when equipped with a Stainless Steel shroud outperform competitive units using planar beams (with their poor response, drift, and light design) in many ways:
-- Sensortronics 65023 load cells, premium name-brand cells outlast and outperform light planar beam designs
-- HD design with 2" diameter rubber faced feet keep them in place
-- SUPERIOR proven Heavy Duty design to outperform the competition
-- As a package, HARD TO BEAT
-- 1:5000 accuracy, sustainable in the REAL WORLD
-- NTEP and Canada COC approved for commercial applications
Example: 24 x 36" Platform, complete package, dual displays
With this design, the electronics package consisting of aluminum enclosure housing the + Series Main Board and Single or Dual displays is located up under the service counter. For a VERY COMPETITIVE quote on these larger platform sizes, please contact us by clicking below.
REMINDER that you can purchase the M64 ELECTRONICS PACKAGE as a separate package to use with existing platforms or to upgrade existing poorly functioning electronics at a very competitive price -- either Single Display or Dual Display.
-- 1:5000 accuracy, sustainable in the REAL WORLD
-- NTEP and Canada COC approved for commercial applications
-- Universal compatibility with 'other' existing platforms
-- Technician's dream design using proven PLUS+ Main Board
