Coti Global CGSB S-Type Load Cell

Coti Global CGSB S-Type Load Cell

$190.00
The Coti Global CGSB Alloy steel S-type load cell is commonly used in suspended hoppers and tanks in tension applications. Available capacities 25lb-40K. NTEP Approved 100lb - 20K. Similar to Celtron STC, Rice Lake RL20001, and Sensortronics 60001A.
CGSB
Qty:

Coti Global Sensors CGSB S-Type Load Cell

Alloy steel S-type load cell commonly used in suspended hoppers and tanks. Available capacities 25lb-40K. NTEP Approved 100lb - 20K. <FM> Approved.



Similar to:

  • Celtron STC
  • Rice Lake RL20001
  • Sensortronics 60001

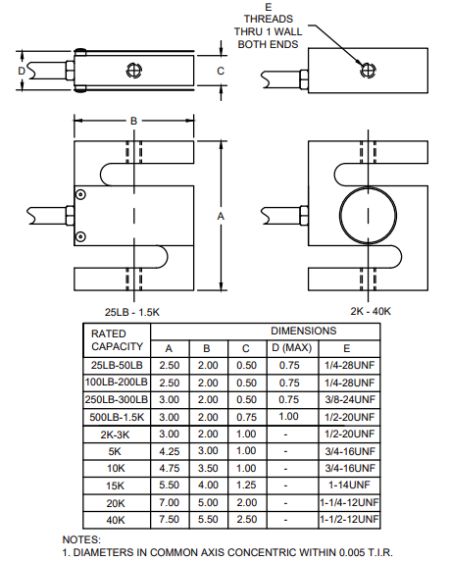

load cell measurements and diagram



PERFORMANCE SPECIFICATIONS: *Non-NTEP
CAPACITIES: *25, *50, 100, 150, 200, 250, 300, 500, 750, 1K, 1.5K, 2K, 2.5K, 3K, 5K, 10K, 15K, 20K, *40K. (LB)
RATED OUTPUT: ~ 3.0 mv/v
SAFE OVERLOAD: 150% FS.
EXCITATION VOLTAGE: 10V AC/DC (15V MAX).
INPUT RESISTANCE: ~ 385 ohms
OUTPUT RESISTANCE: ~ 350 ohms
ZERO BALANCE +/- 1% FS
SEAL TYPE: ENVIRONMENTALLY SEALED IP67.
NON LINEARITY: ~ 0.03% FS
HYSTERESIS: ~ 0.02% FS
REPEATABILITY: 0.01% FS
CREEP: 0.02% FS IN 30 MINUTES.
NTEP RATED CLASS III L, 10000 DIVISIONS, SINGLE CELL APPLICATION.

LOAD CELL CABLE: 20 FT
LOAD CELL WIRING: GRN(+ EXC) BLK(- EXC) WHT(+ SIG) RED(- SIG) BRAIDED/YELLOW SHIELD
FM APPROVED.








Product Name Description
CGSB 25 lb CGSB 25 lb..Alloy Steel Load Cell
CGSB 50 lb CGSB 50 lb..Alloy Steel Load Cell
CGSB 100 lb CGSB 100 lb...Alloy Steel Load Cell.NTEP 1:10,000, Class IIIL-S
CGSB 150 lb CGSB 150 lb..Alloy Steel Load Cell...NTEP 1:10,000, Class IIIL-S
CGSB 200 lb CGSB 200 lb..Alloy Steel Load Cell...NTEP 1:10,000, Class IIIL-S
CGSB 250 lb CGSB 250 lb..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 300 lb CGSB 300 lb..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 500 lb CGSB 500 lb..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 750 lb CGSB 750 lb..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 1K CGSB 1K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 1.5K CGSB 1.5K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 2K CGSB 2K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 2.5K CGSB 2.5K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 3K CGSB 3K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 5K CGSB 5K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 10K CGSB 10K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 15K CGSB 15K..Alloy Steel Load Cell..NTEP 1:10,000, Class IIIL-S
CGSB 20K CGSB 20K..Alloy Steel Load Cell..NTEP 1:10,000, Class III-S
CGSB 40K CGSB 40K..Alloy Steel Load Cell..
