Coti Global CG-23 Shear Beam Load Cell

Coti Global CG-23 Shear Beam Load Cell

$190.00
CG-23 Small Tank Steel Single Ended Beam Load Cell. Alloy steel shear beam load cell commonly used in small tanks, hoppers, platforms and floor scales. Threaded hole. NTEP capacities 250lb - 20K. 100-500lb height dimension is 1.25" rather than 1.00". Similar to Transcell SBS, RL30000, 65023, Revere 5123.
GC-23
Qty:

Coti Global CG-23 Alloy Steel Replacement Load Cell


Alloy steel single ended beam replacement load cell commonly used in small tanks, hoppers, platforms and floor scales. This is the common shear beam strain gauge load cell with Threaded hole that you see used when you need to replace a floor scale load cell. NTEP 08-074A1 capacities 250lb - 20K. <FM> Approved.


Rated Output: 3 mv/V
IP67 Environmentally Sealed
20' long cable



Similar to:
  • Artech 30310
  • Celtron SQB
  • HBM A35*
  • Revere 5123
  • Rice Lake RL30000
  • Rice Lake RL35023*
  • Sensortronics 65023*
  • Tedea 3411
  • Totalcomp TSB
  • Transcell SBS
  • Zemic H8C



*100-500lb height dimension is 1.25" rather than 1.00"

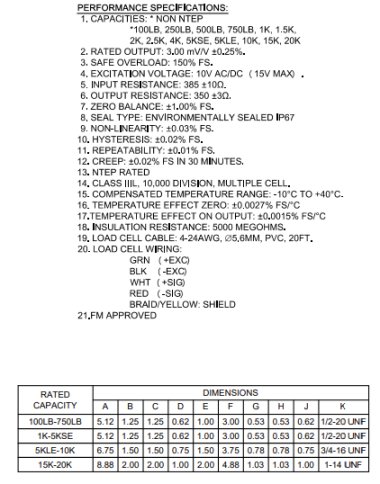

cg 23 specs

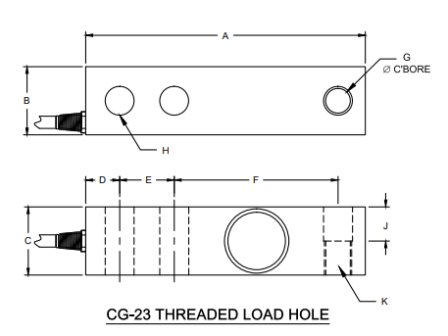

loadcell drawing


Product Name Description
CG-23 100 lb CG-23 100 lb ..Alloy Steel Load Cell..NON NTEP
CG-23 250 lb CG-23 250 lb ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 500 lb CG-23 500 lb ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 750 lb CG-23 750 lb ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 1K CG-23 1K..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 1.5K CG-23 1.5K ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 2K CG-23 2K ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 2.5K CG-23 2.5K ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 4K CG-23 4K ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 5K le CG-23 5K le..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 5K se CG-23 5K se ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 10K CG-23 10K..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 15K CG-23 15K ..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
CG-23 20K CG-23 20K..Alloy Steel Load Cell..NTEP 1:5000, Class III-M
