Cardinal Scale SmartCan Digital Conversion System

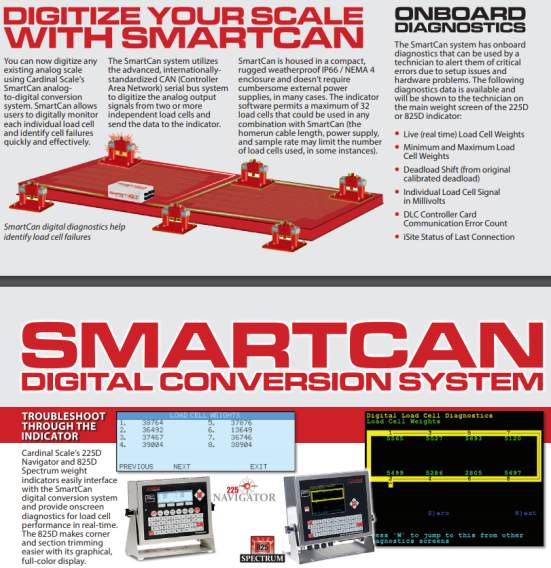

DIGITIZE YOUR SCALE WITH CARDINAL SCALE SMARTCAN

You can now digitize any existing analog scale using Cardinal Scale’s SmartCan analog-to-digital conversion system. SmartCan allows users to digitally monitor each individual load cell and identify cell failures quickly and effectively. The SmartCan system, available from Central Carolina Scale utilizes the advanced, internationally-standardized CAN (Controller Area Network) serial bus system to digitize the analog output signals from two or more independent load cells and send the data to the indicator.

The NTEP-certified SmartCan features Fail-Safe mode which keeps your scale running in the event of a failed cell (coming soon), SmartCal digital calibration adjustments, universal mounting brackets for easy field installation, and remote troubleshooting and scale monitoring through iSite cloud-based software. The compact enclosure size only requires minimal space. SmartCan is ideal for retrofitting existing analog scales or converting analog load cells to a digital system. It may also be used with Guardian® hydraulic load cells.

SmartCan is housed in a compact, rugged weatherproof IP66 / NEMA 4 enclosure and doesn’t require cumbersome external power supplies, in most applications. The indicator software permits a maximum of 32 load cells that could be used in any combination with SmartCan (the homerun cable length, power supply, and sample rate may limit the number of load cells used, in some instances). There are seven different SmartCan boxes available for a wide range of configurations.

Versatile Applications
SmartCan may be used in a variety of different applications with new and existing truck scales, railroad scales, floor scales, bench scales, and batching systems.

Fail-Safe (Coming Soon)
Cardinal Scale’s Fail-Safe feature with SmartCan allows the system to compensate for a failed load cell by mirroring the estimated value of the remaining cells to offset the failed cell. The Fail-Safe feature uses an algorithm to calculate an estimated value from the data of the remaining cells and creates a virtual load cell to replace the data from the down cell.

Troubleshoot through the Indicator
Cardinal Scale’s 225D Navigator and 825D Spectrum weight indicators easily interface with the SmartCan digital conversion system and provide onscreen diagnostics for load cell performance in real-time. The 825D makes corner and section trimming easier with its graphical, full-color display.

SmartCal®
The SmartCan system uses Cardinal Scale’s patented software algorithm called SmartCal® method of calibrating a scale. SmartCal® allows a quick calibration with no manual adjustments while the diagnostic software identifies real and potential system problems before they interrupt your weighing operations.

iSite Remote Monitoring
Cardinal Scale’s iSite is a cloud-based remote monitoring system for load cells connected to the SmartCan conversion box. Text and/or e-mail auto alerts can be sent for errors and warning events. Through secure online dealer access, scale diagnostics may be looked up remotely to quickly identify problems before they interrupt weighing operations.

NEST Toolkit Compatible
Authorized Cardinal Scale dealers may plug a NEST toolkit directly into the SmartCan box for additional onsite diagnostics. NEST allows you to view the diagnostics in your choice of millivolts or pounds. There are three display modes: signals display, minimum-maximum display, and signals minus zero reference display.

Onboard Diagnostics
The SmartCan system has onboard diagnostics that can be used by a technician to alert them of critical errors due to setup issues and hardware problems.

The following diagnostics data is available and will be shown to the technician on the main weight screen of the 225D or 825D indicator:

Live (real time) Load Cell Weights
Minimum and Maximum Load Cell Weights
Deadload Shift (from original calibrated deadload)
Individual Load Cell Signal in Millivolts
DLC Controller Card Communication Error Count
iSite Status of Last Connection

SMARTCAN Features

• Perfect for retrofitting existing analog scales or converting analog load cells to a digital system
• Multiple SmartCans can be connected via daisy-chain for multiple-controller systems
• Fail-Safe mode keeps your scale running in the event of a failed cell (coming soon)
• 7 different SmartCan boxes available for a wide range of configurations
• Enables usage of SmartCal and digital calibration adjustments
• Remote troubleshooting and scale monitoring through iSite software
• Analog-to-digital load cell conversion system
• Receive text and/or e-mail alerts from iSite for any load cell issues
• Troubleshooting of scale issues with the NEST diagnostic tool
• All components housed in a rugged IP66 / NEMA 4 rated enclosure
• Universal mounting brackets for easy field installation
• No power is required in most applications (SmartCan is also available with AC power)
• May be used with Guardian® hydraulic load cells
• Load cell troubleshooting through the Cardinal Scale 225D or 825D indicators
• Compact enclosure size only requires minimal space
• Real-time load cell failure and fault diagnostics
• Lightning/surge protection
• Ideal for troubleshooting multi-platform truck scales
• Analog-to-digital conversion on individual channels
• NTEP certified

Model ................. Description
SMARTCAN4           4 Cell SmartCAN Junction Box
SMARTCAN6           SmartCAN6 Cell Analog to Digital Scale Conversion System
SMARTCAN6-AC     SmartCAN6 Cell Analog to Digital Scale Conversion System w/AC Power
SMARTCAN8           SmartCAN8 Cell Analog to Digital Scale Conversion System
SMARTCAN8-AC     SmartCAN8 Cell Analog to Digital Scale Conversion System w/AC Power
SMARTCAN10         SmartCAN10 Cell Analog to Digital Scale Conversion System
SMARTCAN10-AC   SmartCAN10 Cell Analog to Digital Scale Conversion System w/AC Power

Options:
225D Navigator weight indicator
825D Spectrum weight indicator
Media box for glass fiber optic cable (Model MB-G)
Media box with SnapStream wireless (Model SNAP-DLC)
