Cardinal SB555 Remote Display w/ Traffic Light & Mirroring

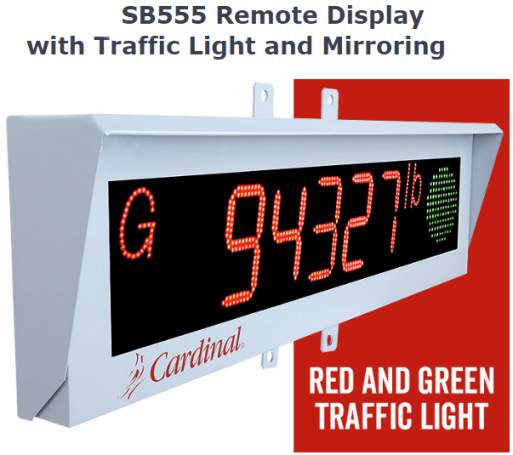

​Cardinal Scale Manufacturing model# SB555 remote display features a traffic light and mirroring. The large 5 in/12.7 cm high-intensity dual-row LED display with red-and-green/stop-and-go traffic lights is high visibility for 250 ft/75 m viewing range and +/- 70 degree viewing angle. It comes standard with a mirror feature that mirrors the display every five (5) seconds allowing the weight to be seen in vehicle mirrors when leaving the scale.

The SB555 supports linked multiple displays for viewing multiple axles and total weight simultaneously by setting a different communication address in each connected display. The powder-coat-painted steel, weatherproof IP65-rated enclosure with built-in rain/sun hood includes four mounting flanges for easy installation. The remote display is compatible with all current and legacy Cardinal Scale indicators, Belt-Way integrators, and most indicators from other manufacturers.

The SB555 offers excellent weight data visibility in outdoor applications and from distances with alpha descriptors for units and weight mode. The convenient bottom access panel provides easy access to internal wiring and configuration switches. An on-board light sensor automatically adjusts brightness to be visible in all levels of light from direct sunlight to total darkness.

Eight serial data formats come standard, including the SB500 with Traffic Light (default setting) and the Beltway Integrator. The remote display can be configured for RS232, RS485, or 20mA with baud rate selectable from 2400 to 19,200. Three data format settings are available: (8, None, 1), (7, Odd, 1), and (7, Even, 1). It supports 20mA current loop communications with both current and legacy Cardinal indicators. It is 36.6 in/93 cm wide by 10.6 in/27 cm high by 4.75 in/12 cm deep.

SB555 Features

• Excellent weight data visibility in outdoor applications and from distances
• High visibility 250 ft viewing range with a +/- 70 degree viewing angle
• Large 5 in high-intensity dual-row LED display with red and green traffic lights
• Alpha descriptors for units and weight mode
• Painted mild steel, weatherproof IP65-rated enclosure with built-in rain/sun hood
• Includes four mounting flanges for easy installation
• Convenient bottom access panel for easy access to internal wiring and configuration switches
• On-board light sensor that automatically adjusts brightness to be visible in all levels of light from direct sunlight to total darkness
• Compatible with all current and legacy Cardinal Scale indicators and most indicators from other manufacturers

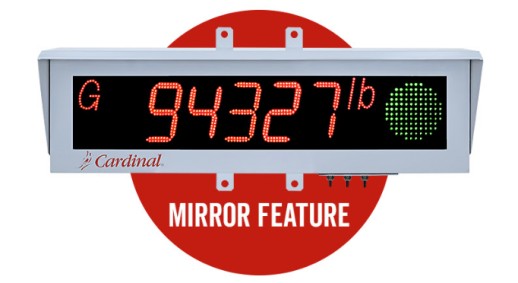

• Mirror Feature that mirrors the display every five (5) seconds allowing the weight to be seen in vehicle mirrors when leaving the scale
• Eight serial data formats including the SB500 with Traffic Light (default setting) and the Beltway Integrator
• If the host is a Beltway Integrator or an indicator with the serial format set to Beltway Integrator, the SB555 allows a user selectable number of digits to be displayed in the data string
• Can be configured for RS232, RS485, or 20mA with baud rate selectable from 2400 to 19,200
• Three data format settings available (8, None, 1), (7, Odd, 1), and (7, Even, 1)
• Supports 20mA current loop communications with both current and legacy Cardinal indicators

SB555 Specifications

Model: SB555
Character Height: 5 inch / 12.7 cm
Display Type: High-intensity dual-row LED with red and green traffic light
Number of Characters: 7-segment, 6 digits with decimal points
Annunciators: Units (lb, kg) and Mode (G, N)
Ambient Light Levels: Total darkness to direct sunlight
Display Capacity: -99,999 to 999,999
Viewing Range: Up to 250 ft / 76 m
Viewing Angle: +/- 70 degrees
Data Input: RS-232, RS-485, 20mA current loop
Data Format: 8N1, 7E1, 7O1, selectable
Baud Rates: 2400 bps to 19,200 bps selectable
Protocols: Seven selectable communication protocols (SMA, SB-400, SB-200, Rice Lake IQ355, Toledo Long and Short, SB500 (with traffic light), and Beltway Integrator)
Data Cable Length: 16 ft (4.9 m) terminated with a DB9
Enclosure Type: Painted mild steel, weatherproof IP65-rated
Mounting Flange Hole Spacing: 6.25 in (15.9 cm) horizontal, 13.0 in (33 cm) vertical
Mounting Flange Hole Size: 0.563 in (14.3 mm)
Power Requirements: 115 to 230V AC (50/60 Hz)
Power Consumption: 100mA at 120V AC (12 watts)
Power Cord Length: 8 ft (2.4 m) with US type B plug (3-pin grounded)
Operating Temperature: -5 to +160 °F (-20 to +70 °C)
Product Dimensions: 36.6 in W x 4.75 in D x 10.6 in H (14.25 in H w/mounting flanges)
Shipping Weight: 31 lb (14.1 kg)
