B-Tek TankPro Floor Scale

B-Tek TankPro Floor Scale

The B-TEK TankPro Floor Scale offers a safe and durable solution for weighing tanks, vessels, and machinery that remain permanently in place. With top access load cell plates and integrated jack bolts, serviceability is made super easy while ensuring safety and minimizing disruptions during maintenance. A great choice for placing a platform scale under a tank.

RFQ

Call: (919) 776-7737

B-Tek TankPro Platform Scale

If only you could place a heavy duty and reliable B-Tek Clydesdale floor scale under a tank.... Well, now you can. The TankPro's robust construction makes it suitable for many tank and vessel weighing applications in numerous factories and manufacturing locations. And if a load cell needs to be replaced, each corner of the scale platform has an access panel and jack bolt.



TankPro Features

  • Top Access Load Cell Plates – Simplifies scale maintenance & repair without removing fixed vessels
  • Integrated Jack Bolts – Supports the scale during servicing without the need for a lift truck
  • Acrylic Alkyd Enamel Paint System – Protects against wear and harsh environments
  • Stainless Steel Ball Encapsulated Feet – Provides stability on uneven surfaces
  • Formed Channel Weighbridge Substructure – Enhances durability and protects components
  • Precision Load Cells – Ensures reliable and accurate measurements

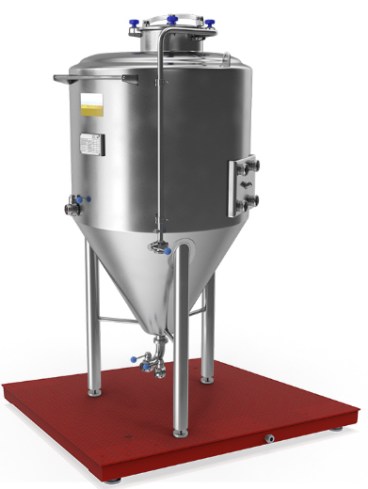

vessel weighing platform scale under the tank
Example of what your tank will look like on top of the TankPro Floor Scale



Usable Footprint
The usable footprint for the tank scale is highlighted in the image below. This scale works with any style and shaped tank that fits within the Tank scale footprint.

Scale Size ..........  Footprint A ........... Footprint B .............. Footprint C
3’x3’                       25.75” Dia               15” X 29”                     23.5” X 36”
4’x4’                        40.5”  Dia               27” X 41”                     35.5” X 48”
5’x5’                          53”  Dia                39” X 53”                     47.5” X 60”
6’x6’                          65”  Dia                51” X 65”                      59.5” X 72”



The B-TEK Tank scale was designed as a more permanent solution to standard floor scales. It is important to ensure the tank fits within the usable footprint of the tank scale. The tank should be centered on the scale without going outside the usable footprint. This ensures that all load cell access plates are accessible when needed.

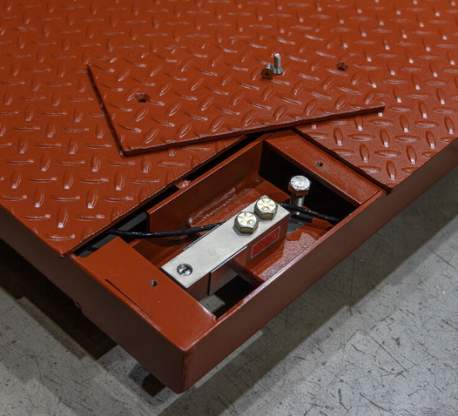

btek tankpro load cell opening



PAINTED STEEL (Tread)
911-1600   3x3   1000 LB
911-1601   3x3   2500 LB
911-1602   3x3   5000 LB
911-1603   3x3   10,000 LB

911-1604   4x4   1000 LB
911-1605   4x4   2500 LB
911-1606   4x4   5000 LB
911-1607   4x4   10,000 LB

911-1608   5x5   1000 LB
911-1609   5x5   2500 LB
911-1610   5x5   5000 LB
911-1611   5x5   10,000 LB

911-1612   6x6   1000 LB
911-1613   6x6   2500 LB
911-1614   6x6   5000 LB
911-1615   6x6   10,000 LB





STAINLESS STEEL (Smooth)
911-3600   3x3   1000 LB
911-3601   3x3   2500 LB
911-3602   3x3   5000 LB
911-3603   3x3   10,000 LB

911-3604   4x4   1000 LB
911-3605   4x4   2500 LB
911-3606   4x4   5000 LB
911-3607   4x4   10,000 LB

911-3608   5x5   1000 LB
911-3609   5x5   2500 LB
911-3610   5x5   5000 LB
911-3611   5x5   10,000 LB

911-3612   6x6   1000 LB
911-3613   6x6   2500 LB
911-3614   6x6   5000 LB
911-3615   6x6   10,000 LB
