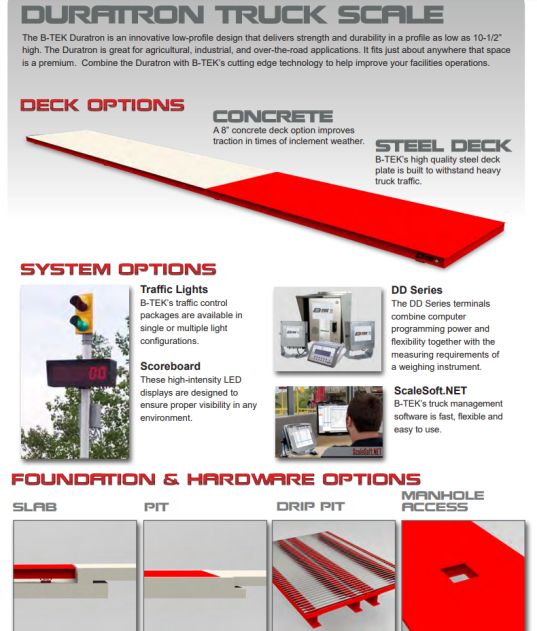

The B-TEK name has long been synonymous with extremely well built truck scale products designed to provide many years of dependable, trouble free service. Decades of application experience ensures B-TEK truly understands customer truck weighing challenges and is able to deliver an industrial scale solution.
COC: 01-075
Type: Above ground flat top and pit installation
Scale Capacity: Up to 270,000 lb
Concentrated Load Capacity: 72,000 lb
Scale Height: 12” standard - 11-1/2” available for retrofit installation
Available Widths: 10’ - 12’
Weighbridge Deck: 3/8” tread plate decking - welded to beams or 8” concrete deck with factory installed tin and rebar - “ready to pour”
Steel Preparation/Paint: Commercial blast cleaning SSPC-SP6; Cross-Linked two-part Epoxy - 2 to 4 mil primer base coat; Two-part UV resistant Polyurethane - 2 to 4 mil top coat
Load Cell: 65,000 double ended shear beam - parallel link suspension system; Plated alloy steel with fully welded gauge covers (IP67)
Load Cell Cable: Braided metal sheathed cable
Electrical: Junction Box NEMA 4X FRP enclosure(s) and B-TEK 4-cell summing board with GDT surge protection
Surge Protection: Tripp Lite Isobar Ultra 4-Outlet line transient protection device and scale grounding package
Popular Part Numbers:
EFTS-601004 60x10, 60x11, or 60x12 200,000 lb Steel
EFTS-701004 70x10, 70x11, or 70x12 200,000 lb Steel
EFTS-801004 80x10, 80x11, or 80x12 200,000 lb Steel
EFTC-601004 60x10, 60x11, or 60x12 200,000 lb Concrete
EFTC-701004 70x10, 70x11, or 70x12 200,000 lb Concrete
EFTC-801004 80x10, 80x11, or 80x12 200,000 lb Concrete
