MSI TranSend Wireless Load Cell Interface

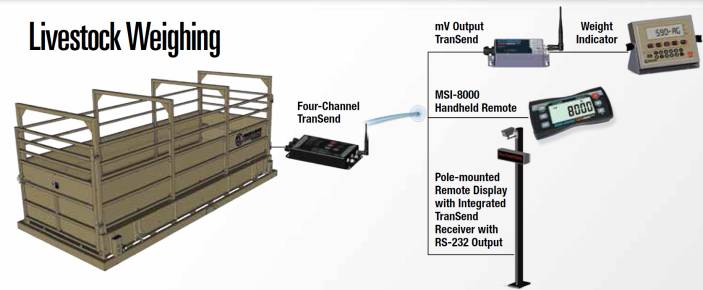

From the initial weigh on the scale to the final numeric value on the indicator, efficient communication is key to the success of the entire operation. Whether it’s overhead, livestock, tank, or heavy capacity weighing, once your traditional conduit is damaged or needs to be replaced, communication is halted and so is your operation. MSI TranSend wireless load cell interface not only solves issues resulting from traditional conduit, it also exceeds communication application expectations. TranSend Wireless Load Cell interface brochure (pdf file)

From the brand you know and trust for expert integrated solutions, MSI has designed TranSend to transform the signal of one or more load cells and transmits that data wirelessly to a receiving unit. TranSend is fully compatible with a broad range of receiving devices including MSI-8000, MSI-8000HD, any other digital weight indicator, PC, PLC, or other industrial device. Housed in a rugged IP-66 NEMA 4 enclosure, Overhead Weighing TranSend with RS-232 Output TranSend with Analog Output TranSend with mV Output MSI-4260 Crane Scale Weight Indicator TranSend is suitable for most indoor and outdoor environments with an operating distance of up to 300 feet.

Select from the basic functionality of single-channel models, or upgrade to the expanded capabilities of multi-channel models. Multi-channel devices offer up to three optional relay contacts, audible alarm, and can function as a smart junction box. In the event of a load cell failure, TranSend can automatically compensate and transmit a service warning, and compensate for that load cell until it is repaired. TranSend transforms the way your devices communicate between one another. Upgrade your current communication process by eliminating expensive conduit and replacing it with TranSend.

Standard Features
• Works with any basic digital weight indicator
• Excitation to load cell(s) provided by the transmitter, not the indicator
• Each transmitter/receiver set is individually paired and will not interfere with another set
• Auto-off mode - selectable for 15, 30, 45, 60 minutes or off
• Auto-sleep mode - power down during non-use, power up with weight change, or key press

TRANSMITTERS
5-6 VDC Power Input
160330 ........... Single-channel transmitter, no relays. RF 802.15.4, 2.4 GHz
159207 ........... Four-channel transmitter, no relays. RF 802.15.4, 2.4 GHz
161949 ........... Four-channel transmitter, includes three coil relays. RF 802.15.4, 2.4 GHz

7-36 VDC Power Input
160329 ........... Single-channel transmitter, no relays. RF 802.15.4, 2.4 GHz
159470 ........... Four-channel transmitter, no relays. RF 802.15.4, 2.4 GHz
161951 ........... Four-channel transmitter, includes three coil relays. RF 802.15.4, 2.4 GHz

85-265 VAC Power Input
160328 ........... Single-channel transmitter, no relays. RF 802.15.4, 2.4 GHz
159469 ........... Four-channel transmitter, no relays. RF 802.15.4, 2.4 GHz
161950 ........... Four-channel transmitter, includes three coil relays. RF 802.15.4, 2.4 GHz

RECEIVERS
5-6 VDC Power Input
160337 .......... Receiver to provide a mV signal to a digital weight indicator. RF 802.15.4, 2.4GHz
160334 .......... Receiver to provide an analog output signal: 4-20 mA, 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC. RF 802.15.4, 2.4 GHz
160016 .......... Receiver to provide an analog output signal: 4-20 mA, 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC. Includes three coil relays. RF 802.15.4, 2.4 GHz

7-36 VDC Power Input
160336 .......... Receiver to provide a mV signal to a digital weight indicator. RF 802.15.4, 2.4GHz
160333 .......... Receiver to provide an analog output signal: 4-20 mA, 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC. RF 802.15.4, 2.4 GHz
159476 .......... Receiver to provide an analog output signal: 4-20 mA, 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC. Includes three coil relays. RF 802.15.4, 2.4 GHz

85-265 VAC Power Input
160335 ......... Receiver to provide a mV signal to a digital weight indicator. RF 802.15.4, 2.4GHz
160332 ......... Receiver to provide an analog output signal: 4-20 mA, 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC. RF 802.15.4, 2.4 GHz
159475 ......... Receiver to provide an analog output signal: 4-20 mA, 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC. Includes three coil relays. RF 802.15.4, 2.4 GHz

Options/Accessories
162172 .... Charger, TranSend for 6V SLA battery
162173 .... Battery, TranSend 6V SLA
162175 .... Enclosure, TranSend for 6V SLA battery
150964 .... RS-232 13 ft (4 m) serial cable with 9-Pin (female) connector
150965 .... RS-232 13 ft (4 m) serial cable with 9-Pin (male) connector
160109 .... AC adapter, TranSend 6V
162178 .... Antenna kit, remote standard antenna
139309 .... Antenna kit, long range Omni with 3 M coax
139310 .... Antenna kit, corner reflector 9 dbi with 3 M coax
139311 .... Antenna kit, corner reflector 12 dbi with 3 M coax
139312 .... Antenna kit, Yagi 15 dbi with 3 M coax
144345 .... 30 M coaxial cable, for use with non-vehicle mount antenna kits
139313 .... Antenna kit, vehicle mount. 5 dbi with 5 M coaxial cable
162177 .... Cordset, TranSend. Pre-wired for use with single channel transmitters or non-relay based receivers
162184 .... Load cell connector, TranSend. Field wireable, 4-6 mm straight. For use with single channel transmitters and all receivers
162185 .... Load cell connector, TranSend. Field wireable, 6-8 mm straight. For use with single channel transmitters and all receivers
162186 .... Load cell connector, TranSend. Field wireable, 4-6 mm right angle. For use with single channel transmitters and all receivers
162187 .... Load cell connector, TranSend. Field wireable, 6-8 mm right angle. For use with single channel transmitters and all receivers
