Rice Lake Counterpart Configurable Parts Counting

In contrast to classic counting scales, Counterpart utilizes Rice Lake’s straightforward configuration approach to adjust to the parameters and resolution of any connected scale platform, whether a floor scale, bench scale, or laboratory balance. Counterpart likewise attaches with many bar code scanners, label printers, and inventory management computer software, which makes it potentially the most flexible machine in virtually any inventory environment.

Rice Lake’s configurable counting indicator eliminates the equipment learning curve. Users basically follow the keys left to right- zero, tare, and sample. View weight, piece weight, description and quantity all simultaneously. And a ten-piece default sample is all that Counterpart ever demands. While Counterpart was made for user simplicity, additionally, it supplies the high-end characteristics essential for much better inventory control and record keeping. Onboard Ethernet provides for connection to a personal computer where WeighVault® software for Counterpart counting scales can take your data storage and reporting capabilities to new levels. Counterpart can be obtained individually for operating one or more scale bases, or together with an entire scale base and indicator bundle.

Counterpart® from Rice Lake Weighing Systems is a configurable indicator -- specially designed from the board up. With amazingly precise internal resolution, it counts any part, from tiny resistors to heavy engine parts -- accurately, quickly and easily. Rice Lake's Counterpart comes out of the box ready to count anything in your operation.

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device—for parts of every shape and size. Unlike traditional counting scales, Counterpart uses Rice Lake’s simple configuration method to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart, available from Central Carolina Scale also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.

Rice Lake’s new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right— zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires. While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights. Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.

Counterpart gives you more for less

Counterpart interfaces with most scale bases, balances, scanners, label printers, and text printers, regardless the manufacturer. Onboard Ethernet can gather and transmit scale data to most software.

Rice Lake offers a choice of two Counterpart consoles, dual scale or single scale. Both can be connected to virtually any analog scale or serial scale input, to count a full range of parts, from smallest to largest. Counterpart is loaded with user-friendly features designed to help operators produce perfect results by simply following the keys: zero, tare, sample, and count.

The display allows operators to simultaneously view weight, piece weight, description and quantity simultaneously. The ten-piece default sample setting and accuracy enhancement features release operators from counting out large samples.

Operators can choose display modes, weight/1000 or average piece weight (APW), and work in the mode that’s most familiar. While the Counterpart has infinite power to handle the most complex operations, most counting tasks will be accomplished with a simple touch of a button.

Rugged, lightweight and portable

Counterpart is easy to transport throughout a plant, ideal for seasonal rentals, and the right solution for permanent installations.

If space is limited, or the display needs to be out of harm’s way; it can be detached from the base and mounted on a wall.

The optional internal rechargeable battery provides hours of portable counting power.

Improve accuracy and streamline operations. Counterpart features built-in item and bar code recall, plus network capabilities. The item recall memory allows operators to store 150 ID numbers, part numbers, piece weights, tare weights, lot numbers and inventory balance. WeighVault for Counterpart interfaces with a PC for virtually unlimited storage. Operators can also program setpoints, based on weights, quantity, percent weight or percent quantity. Two standard RS-232 serial ports to add a bar code scanner, eliminating manual entry errors and quickly recalling stored data.

For instant documentation, add a label, ticket or tape printer for on-the-spot recording of your data. The Counterpart’s configurable data output and multiple formats allow easy customization. For further expand-ability, networking options make Counterpart easy to integrate with existing IT processes. All data is displayed simultaneously on the bright LCD display. Operator may toggle between displayed items to show desired feature in larger font, or toggle from one scale to another. Endless capacity range and system versatility with 2 inputs (one analog and one serial scale) or 3 inputs (two analog and one serial scale) standard.

OPTIONS

124692    Rechargeable lithium-ion battery option
32375      Connector, 14-Pin Amphenol load cell (can be soldered to home run cable)
125062    Ethernet quick access coverplate for Counterpart
125079    Quick access 9-Pin cover plate
120767    Quick access 14-pin Amphenol cover plate
125495    Wireless LAN card WIFI 802.11 A/B, optional kit
67604      Serial port card, dual channel RS-232 and RS-485
125546    WeighVault™ for Counterpart
77925      Revolution®, PC software utility for setup
118677    Operators manual
121459    Front mount bracket
121474    Software download cable
121501    Stand, angled free standing for table top
121458    Power supply
15438      Power cord

Printers And Cables
107403   RL-22DT printer, 2 in direct thermal, 203 dpi, real time clock 110/240 VAC
65617     Direct thermal label, 2.25 in x 4.5 in
41276     Cable DB9M to blunt end RS-232 cable for RL-22DT
81076     Epson® TM-U220 tape printer, RS-232 serial, universal power supply
69916     One-ply bond paper roll, 3 in x 150 ft, .5 in core
15547     Cable universal serial interface, 25-Pin D-Sub M to blunt end RS-232 cable for Epson TM-U220
78860     Ethernet cross cable for direct connection to WeighVault
121495   Kit, QD2100 RS-232 scanner, cable stand and 9 Pin Din quick connect cable (supplies power to scanner, reduces battery life)

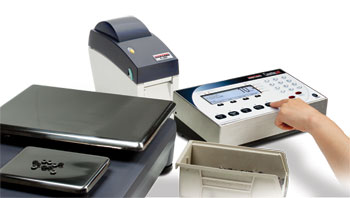

Dual Platform Scale Bases (recommended for use with part number 121459 front mount bracket)
73262   Scale, DIGI S-XD 1/10lb Dual Platform, 4 in x 6 in/9 in x 12 in
73263   Scale, DIGI S-XD 1/25lb Dual Platform, 4 in x 6 in/9 in x 12 in
73264   Scale, DIGI S-XD 1/50lb Dual Platform, 4 in x 6 in/9 in x 12 in
73266   Scale, DIGI S-XD 2.5/25lb Dual Platform, 4 in x 6 in/9 in x 12 in
73267   Scale, DIGI S-XD 2.5/50lb Dual Platform, 4 in x 6 in/9 in x 12 in

Replacement Parts

118434 Overlay, membrane switch panel (1)..........................................................................
118435 Counterpart cover enclosure (1)................................................................................
120756 Seal stripe, nylon brush with holes (1).........................................................................
119275 LCD display module..................................................................................................
120484 CPU mounting bracket (1)...........................................................................................
14621 Kep nut, 6-32NC hex (6)...............................................................................................
120741 CPU board (1) single AD...........................................................................................
117507 CPU board (1) dual AD..............................................................................................
14822 Machine screw, 4-4 ONC x 1/4 (6)...............................................................................
118437 Enclosure base (1).......................................................................................................
19433 Rubber foot (4)..............................................................................................................
60130 Ribbon cable (1)..........................................................................................................
75146 Cover plate (1)...............................................................................................................
120266 Machine screw, 6-32NC x 3/8 (7)................................................................................
69291 Lithium battery, 3V (1)..................................................................................................
59274 #6 flat washer (1)...........................................................................................................
56972 Flat cable clamp (2).......................................................................................................
128063 Power supply 12 V, requires power cord.....................................................................
15438 AC power cord............................................................................................................
