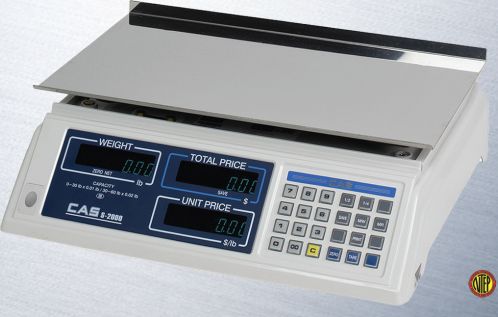

When you think of the CAS Corporation S-2000 digital price computing scale from Central Carolina Scale, you think of features like dual range models that can display weight 0-30 x 0.01 lb / 30-60 x 0.02 lb. You also notice the 999 PLU's and a super bright VFD Display. The price computing scale comes complete with a 14.6 x 10.9 inch Stainless Steel Platter, 1/2 lb and 1/4 lb keys and is NTEP legal for trade.
|
Weighing Capacity
|
0-30 lb x 0.01 lb / 30-60 x 0.02 lb |
|
Display Digit
|
Total Price / Weight / Unit Price ( 6 / 5 / 6 ) |
|
Display Designators
|
Zero and Tare |
|
Power Source
|
AC 120V, 60Hz |
|
Power Consumption
|
Approx. 10w |
|
Operating Temperture
|
-10 °C ~ 40 °C(14 °F ~ 104 °F ) |
|
Platter Size (inch/mm)
|
14.6 (W) x 10.9 (D) / 372 (W) x 278 (D) |
|
Dimensions (inch/mm)
|
15.3 (W) x 14.3 (D) x 6.4 (H) 388 (W) x 364 (D) x 163 (H) |
|
Product Weight
|
17.1 lb / 7.8 kg |
S-2000 Replacement Scale Parts
Object PART DESCRIPTION PART No. Location
A class EPROM FOR AP-1 & S2000 60lb AAP1 AAP1
IC(Integrated Circuit) (OTP) AM27C64-200PC APD1 APD1
Body NAME PLATE BS02 BS02
SCALE BODY 1100-A00-0050 BS01
Case UPPER CASE (EARLY VERS.) 1700-A00-0060 CS01
UPPER CASE (NEW VERS.) 1700-A01-0060 CS02
WATER LEVEL GAGE COVER 1708-A00-2040 CS03
Display ADHESIVE(FRONT FOR S-SERIES) 2607-A00-0040 DS09
FRONT DISPLAY COVER (15kg*0.005kg) DS0A DS0A
FRONT DISPLAY COVER (60 lb) DS0B DS0B
FRONT DISPLAY COVER (NEW VERS.) (lb) 1710-A01-0020 DS05
REAR DISPLAY COVER 1710-A02-0030 DS07
REAR DISPLAY COVER (lb) 1710-A00-0030 DS03
REAR DISPLAY COVER (60lb) DS0C DS0C
REAR DISPLAY COVER (kg) 1710-A00-0030K DS04
Fuse FUSE HOLDER 7534-A00-0030 FS02
FUSES (PKG. OF 10) 7524-A00-6020 FS01
Key KEY BOARD CAPS (SET OF 24) 1708-A00-1000 KS02
KEY BOARD RUBBER CONTACTS ( 60lb) KS09 KS09
KEY BOARD RUBBER CONTACTS (S2000 30lb) 2253-A00-0223 KS03
SPILL PROF OVERLAY 2253-S00-0000 KS06
L/C LOAD CELL (30 lb/15 kg) ILC003 LS01
LOAD CELL (60 lb/30 kg) ILC004 LSC2
Level LEVEL BUBBLE 1715-A00-0001 GS01
Manual ,OWNERS MANUAL (30lb) 9002-A00-0021 MS01
OWNERS MANUAL (60lb) MS03 MS03
SERVICE MANUAL (30lb) 9002-S00-0021 MS02
SERVICE MANUAL (60lb) MS04 MS04
Packing INNER BOX US02 US02
OUTER BOX (S2000-W) (SINGLE) US04 US04
POLY BAG US01 US01
STYROFOAM BOX US03 US03
PCB ANALOG PCB (22.5K) GAIN RESISTOR 6144-A00-0064 PL16
ANALOG PCB (23.5K) GAIN RESISTOR PS0D PS0D
INTERFACE PCB (RS-232) 6144-A00-0070 PS0A
KEY BOARD ASSY.FOR 30lb PS07(1)+KS03(1)+KS02( 2100-S20-0000 PS01
KEY BOARD ASSY.FOR 60lb PS0C(1)+KS09(1)+KS02(PS0E PS0E
KEY BOARD PCB (30lb) "JUST BOARD" 6134-A00-0051 PS07
KEY BOARD PCB (60lb) "JUST BOARD" PS0C PS0C
MAIN PCB (30lb) 6114-A00-0402L PS04
MAIN PCB (60lb) PS0B PS0B
MAIN PCB (S-2000, kg) 6114-A00-0402K PS03
REAR DISPLAY PCB (kg) 6124-A00-0160 PS06
REAR DISPLAY PCB ASSY (30lb) "NEW" 6124-A00-0153 PS09
REAR DISPLAY PCB ASSY (60lb) PS0F PS0F
Power A/C CORD 7564-A00-0090 XM13
A/C CORD STOPPER 7654-A00-0604 XAP1
NOISE FILTER 7514-A00-0020 XM12
TRANSFORMER (110/220/60Hz) 7504-A01-0050 XS02
TRANSFORMER 120V/60HZ ALT TO XSC1 7504-A00-0050 XS01
Screw NUT (HEX) OS03 OS03
RUBBER FEET W/ ADJUST BOLTS (EACH) 2600-A00-1050 OS01
Sealing CAL PLATE W/ SCREWS 1004-A00-0080 SS01
CAL SWITCH PCB 6134-A00-0071 SS02
CALIBRATION BOLT SS03 SS03
SEALING BOLT SS04 SS04
Switch ON/OFF SWITCH 7745-A00-0502 NI11
Tray FISH PAN PLATTER 1002-A00-0300 TS03
PLATFORM (WITH CUSHIONS) 1100-A00-0550 TS01
PLATFORM CUSHIONS (EACH) 2600-S00-0020 TSC1
STANDARD PLATTER 1002-A00-0040 TS02
VFD F.I.P. DISPLAY TUBE (ALT. VL14) 7 DIGIT 7204-E00-0713 VL13
VS01 VS01
F.I.P. DISPLAY TUBE (ALT. VS01) 7 DIGIT VL14 VL14
F.I.P. DISPLAY TUBE (NEW MODEL) 6DIGITS 7204-E00-0709 VSC1
F.I.P. DISPLAY TUBE, 5 digits OLD 7204-E00-0601 VM11
Wire CABLE (ANALOG OR INTERFACE) 7870-D00-1030 WS01
KEY BOARD CABLE 7870-D00-2215 WS02
